Aluminium Open cell (Grid) celing

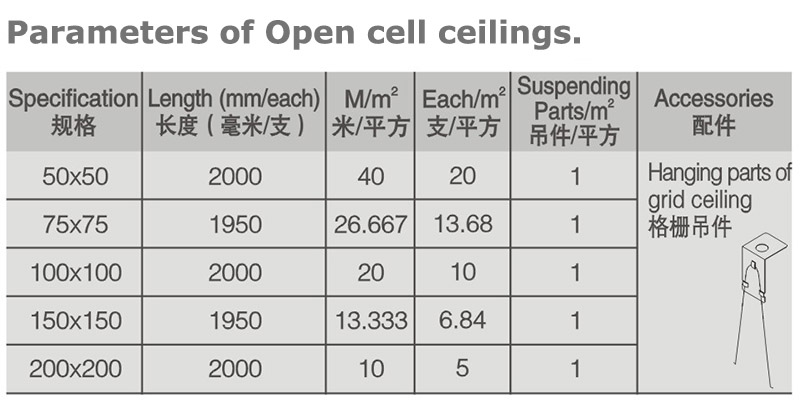

Cell sizes available:
50*50mm;75*75mm;100*100mm;150*150mm;200*200mm
or customizing sizes.
Thickness of cell body:
0.4mm;0.5mm;0.6mm;0.65mm;0.7mm or above
Depth of cell:
36mm;43mm;50mm;60mm;80mm;100mm
Bottom width:
10mm;15mm or customizing sizes.


Introduction :

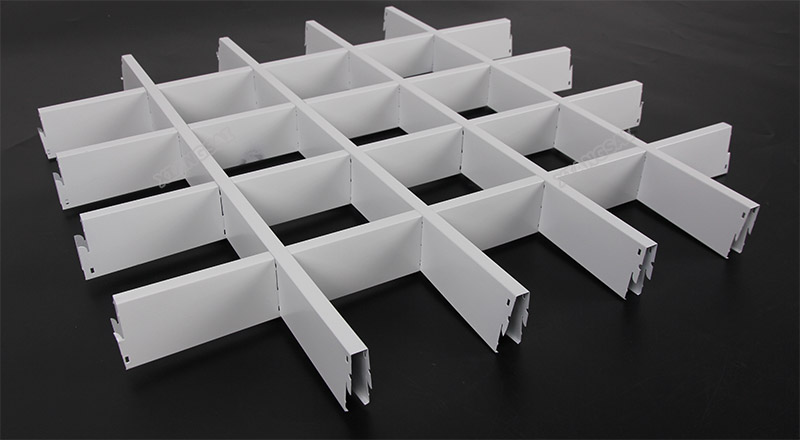

Aluminium Open cell (Grid) celing:


Raw materials:Aluminium Alloy.



Surface colour treatment methods:
All types of powder coating(ordinary,polyster), pre-painted colours,rolling painting;PVC laminating; PVDF painting and etc.

Features:
a)Fireproof B1 grade; damp resistance,temperature resistance,bacterium and sound asorption.No radiation,no harmful substance to human body; eviroment friendly.
b)Diversity colours,clean and colour long lasting.

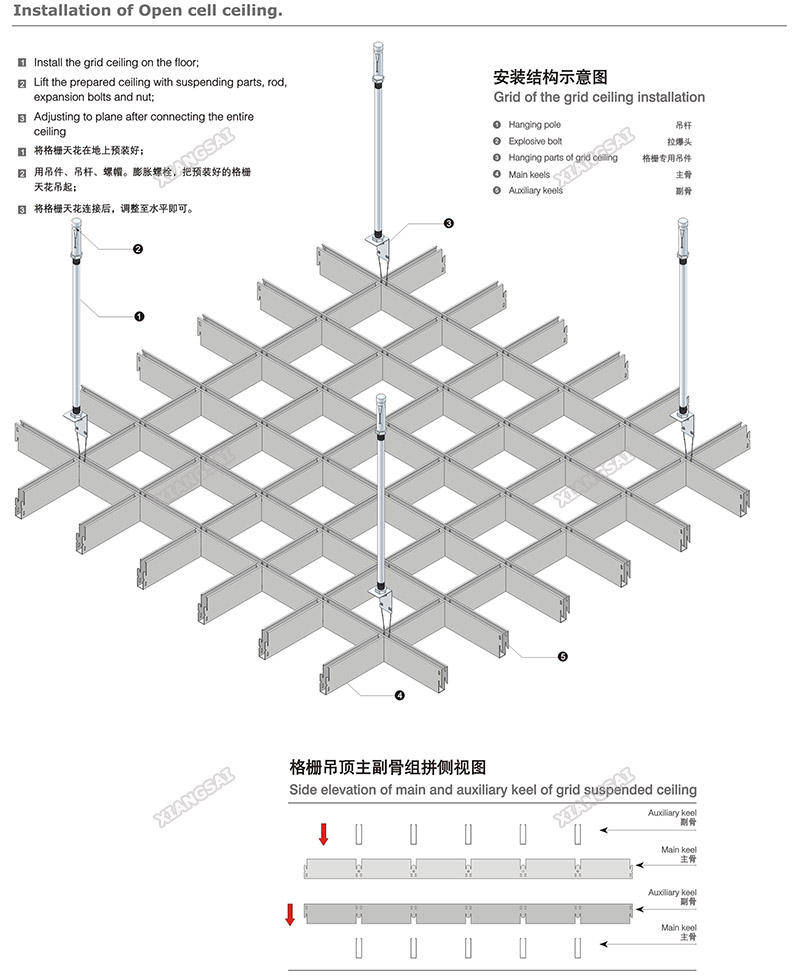

c)Easy to install and maitainance;Avail for dispose the ventilation and fire protection facility upon ceiling. Flexible to combine with ceiling lamp or other ceiling decoration materials.
d)light weightness easy for installation and uninstallation.


Application:

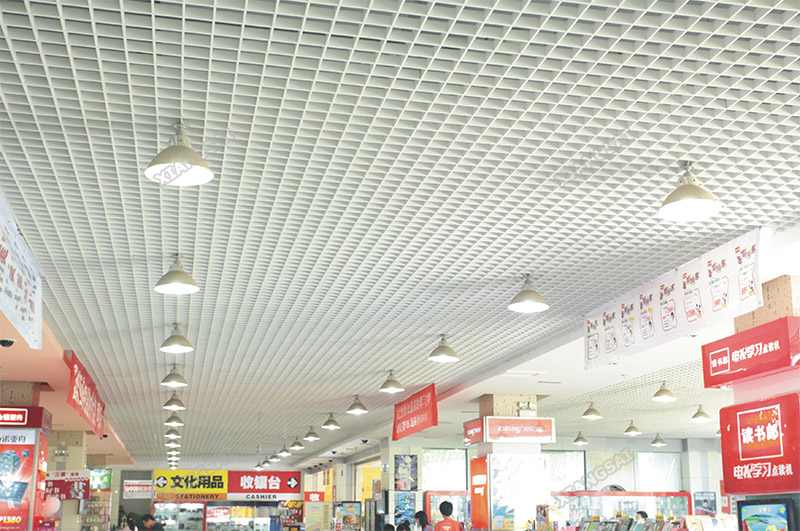

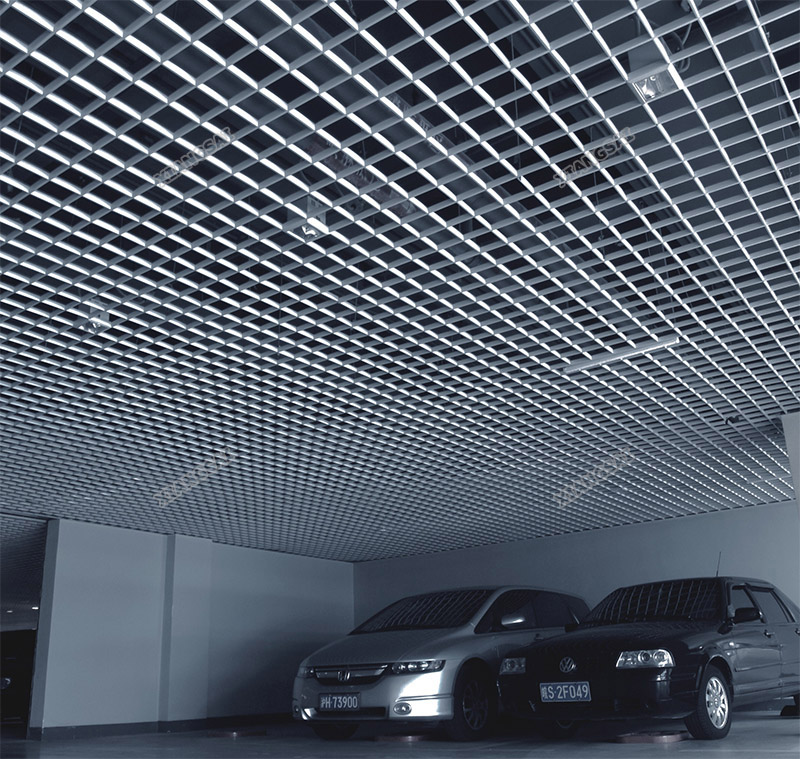

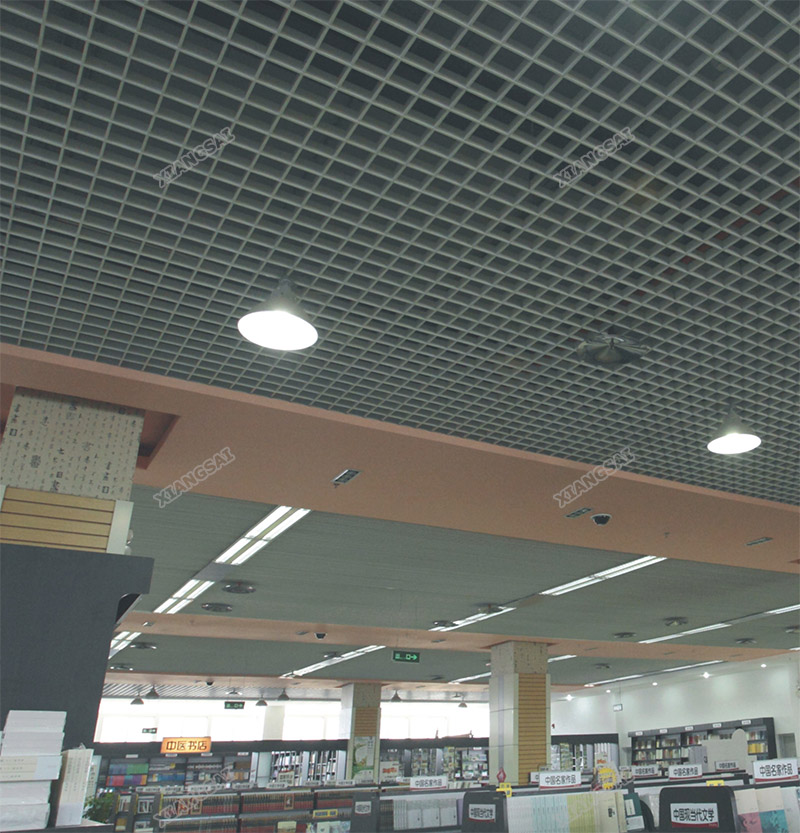

Xiangsai Open cell ceiling is another master work for big space ceiling decoration. This product can be perfectly matched with most of lighting fixtures, mutually creating brilliant and magnificent space effects.This product is recommended to apply in shopping mall,super market,airport,bus station,resturant and etc.  One important detail must be considered, that is the uper space above open cell ceiling must be assured with clean,dry and no dusts.
