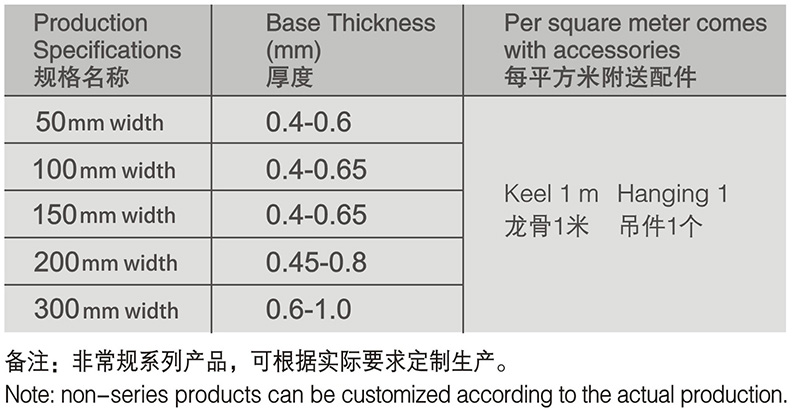

Aluminium linear strip ceiling panel sizes available:
Width:25mm;50mm;100mm;150mm;200mm;300mm
Height: Straight edge 14mm
Bevel edge 16mm
Lenth:2000mm;3000mm or customized
Thickness of panel:
0.60mm,0.70mm,0.80mm,0.90mm,1.0mm or above.
Edge type:Straight Edge and Bevel Edge.
Introduction : |
Aluminium linear strip ceiling panel system. |
Base raw materials:
Aluminium Alloy
Surface colour treatment methods:
All types of powder coating(ordinary,polyster), pre-painted colours,rolling painting;PVC laminating; PVDF painting and etc.

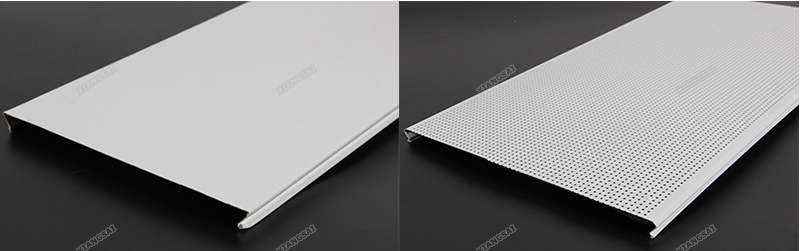

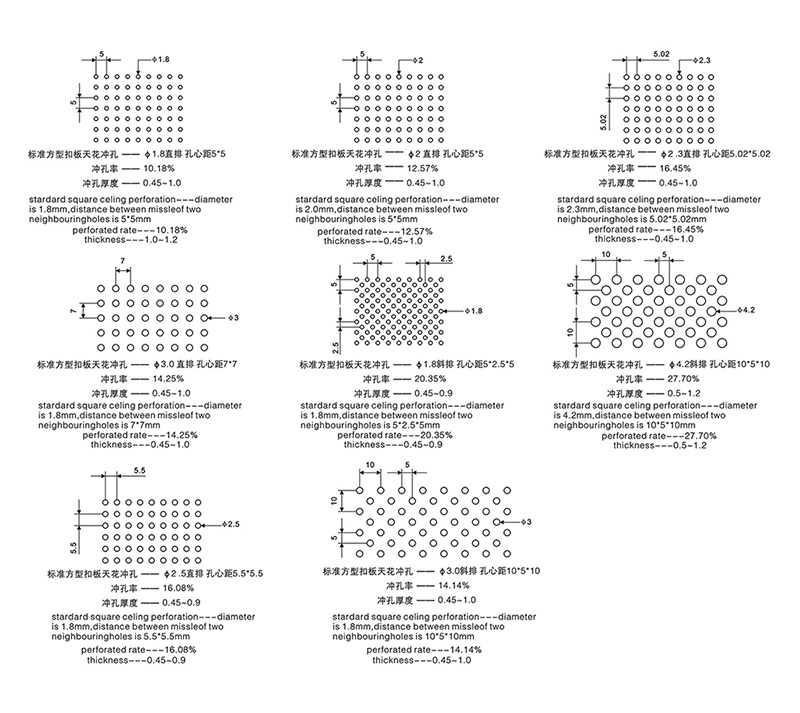

Perforation:
A full range of perforation patterns are available.
Aluminium ceilings maintain a range of perforating and custom perforations can be provided. Perforation patterns can be diagonal or straight row and the perforations can be provided in round, square or othe shapes of holes in various diameters and sizes. The panel can also be provided without perforations.
Features:
a)Fireproof B1 grade; damp resistance,temperature resistance,bacterium and sound asorption.No radiation,no harmful substance to human body; eviroment friendly.
b)Diversity colour and pattern options;clean and colour long lasting.
c)Perfect surface flatness and smoothness; surface are washable.Easy to clean and maintainlence.
d)light weightness easy for installation and uninstallation.

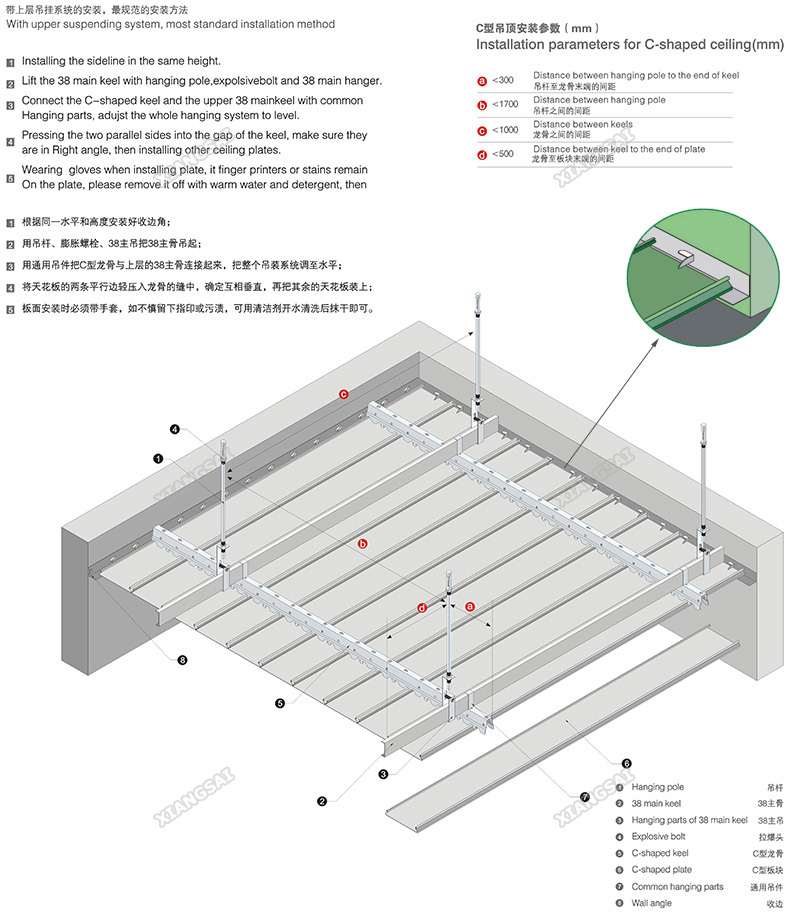

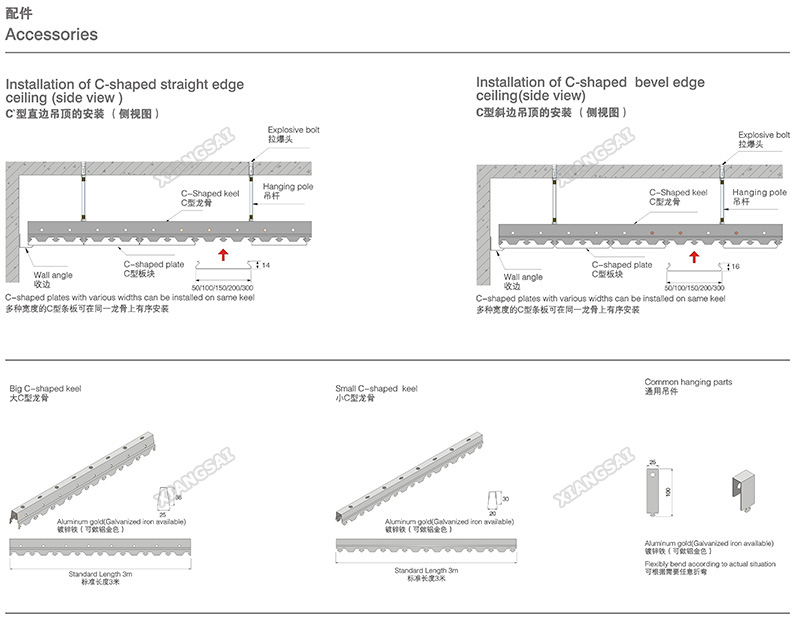

Installation:

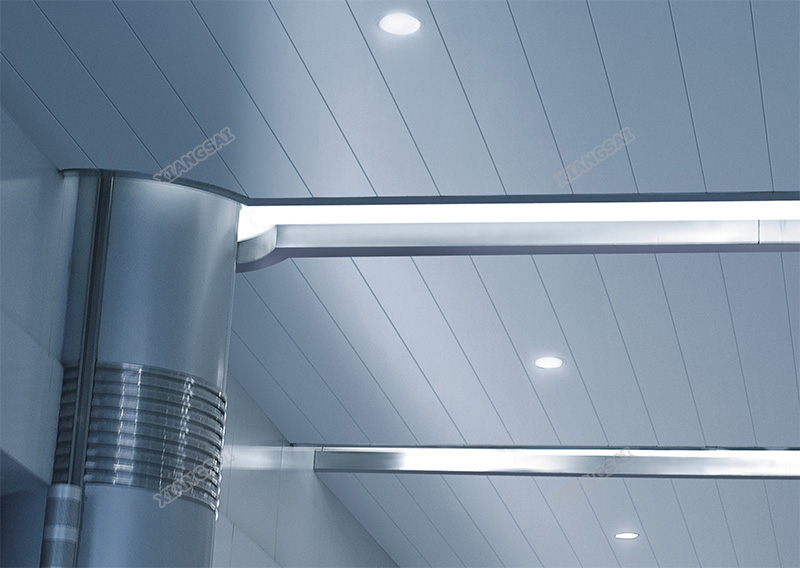

Application:
Aluminium linear strip ceiling is applicable in various of buildings like hotel,stores, offices,hospitals,kitchen,toilet,corridor etc.Its strip shape mostly with surface treatment of laminated films; and mostly choose strip pattern films as well. Aslo people prefer to combine a couple of colours by repeating these colour strips; these application give space a vision of clean, regular,and formal. Besides it have same compatible features with regular sizes of ceiling appliances,lightings and vents; so it also has colourful combination with household ceiling decorations.

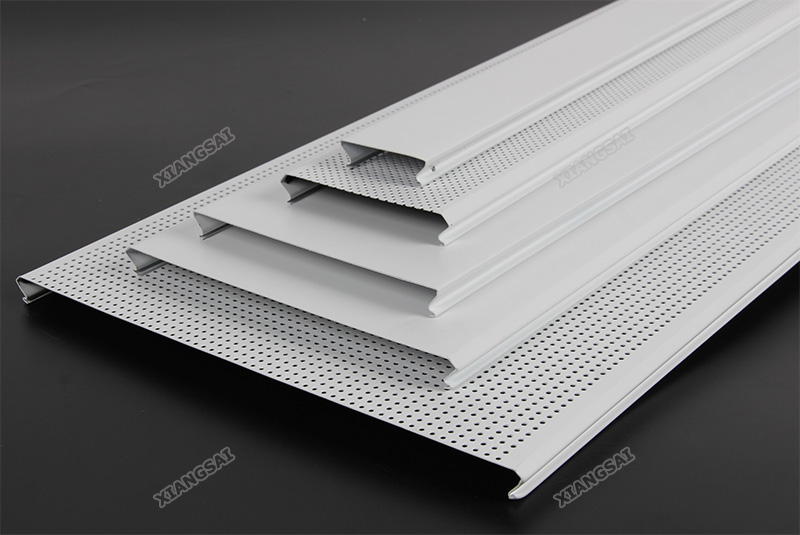

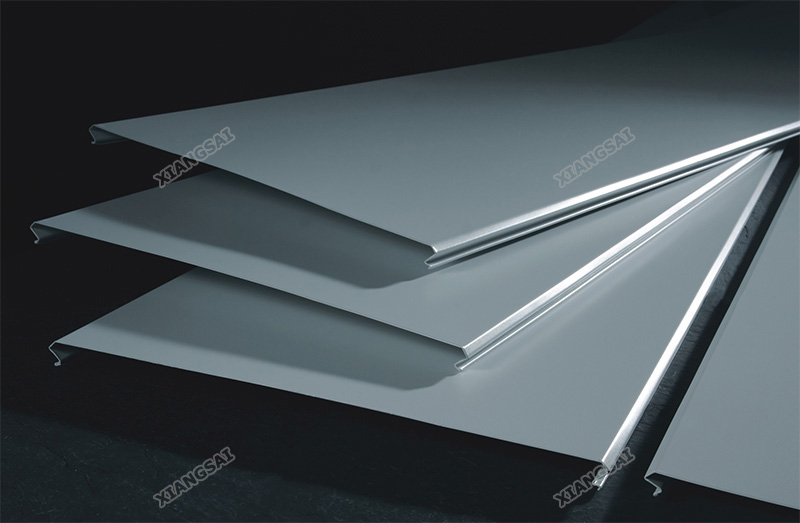

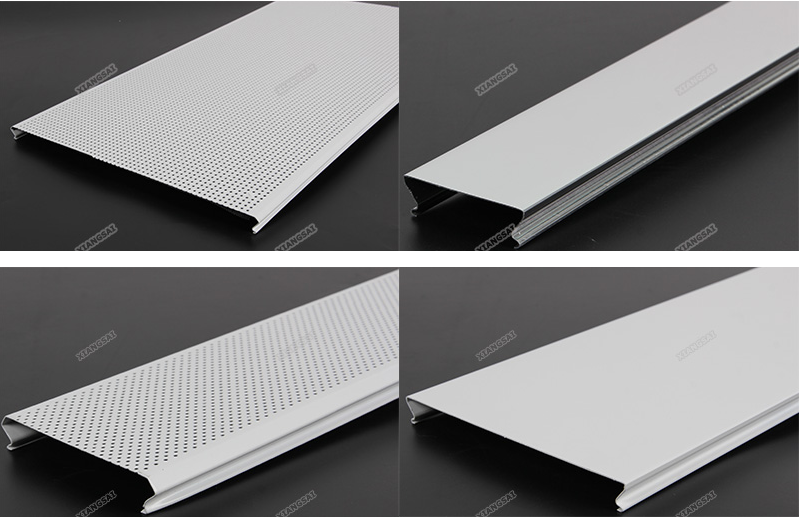

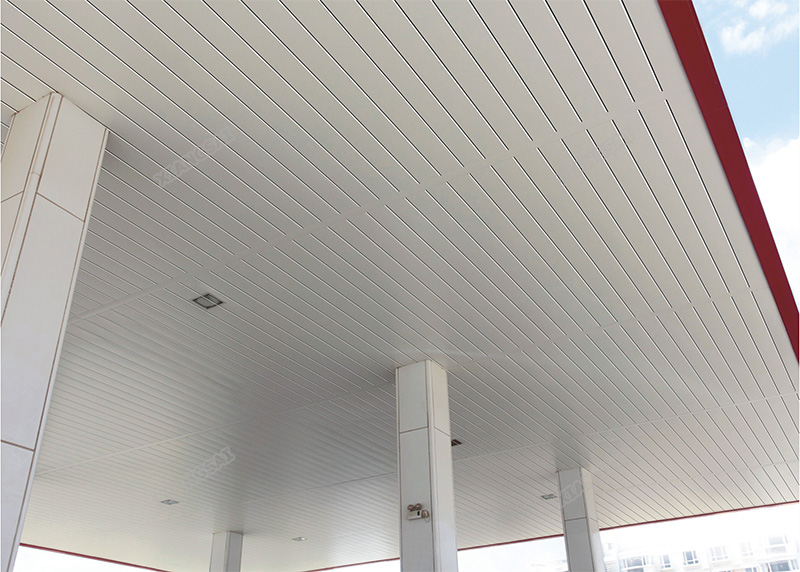

Product pictures:
