Normal size: 600x600/600x1200mm, other size to order.
Width ≤1200mm,Length≤2700mm
Density:
100-130kg/m3
Thickness:
12/15/20/25 or as requirement
Color:
White and colored
Function:
Soundproof,fireproof,and decoration

Introduction :

Fiberglass Wall acoustic board Main Material Torrefaction compounded high density fiberglass wool

Features:
Excellent sound insulation.
Excellent Fire resistant.
Light weight, no sagging, warping or delamination.
Green Eco-Friendly building material.

Face:
Special painted laminated with decorative fiberglass tissue
Design:
White spray/white paint/black spray/colorful as demand

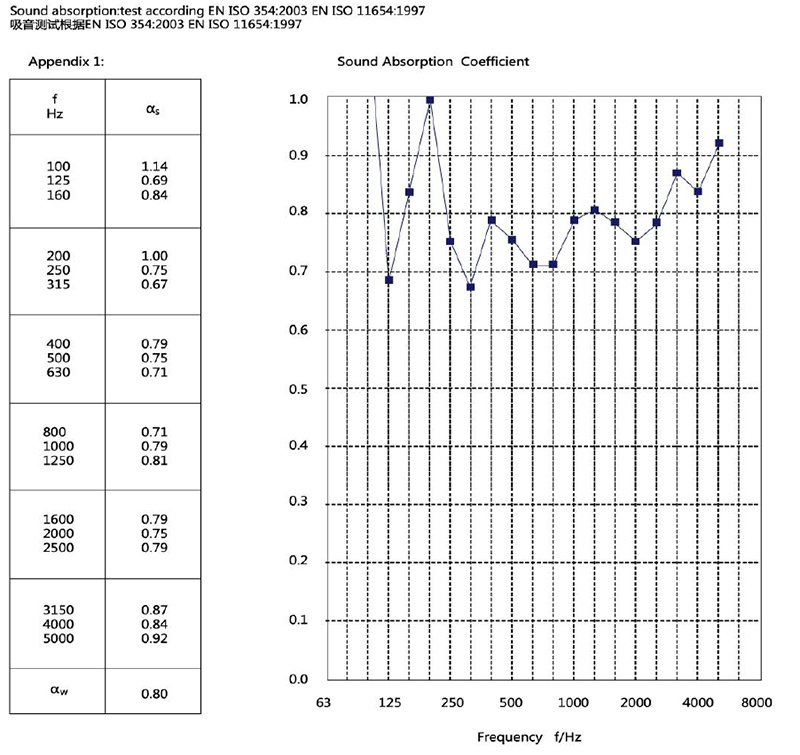

Sound absorption coefficient:
NRC 0.8-0.9 tested by SGS (ENISO354:2003 ENISO11654:1997)
0.9-1.0 tested by national authoritative departments(GBT20247-2006/ISO354:2003)



Fire-Resistant:
Class A tested by SGS/Class A tested by SGS (EN13501-1:2007+A1:2009)
Class A tested by National authoritative departments (GB 8624-2012)

Thermal-Resistant:
≥0.4(m3.k)/W
Humidity:
Dimensionally stable with RH up to 95% at 40°C,no sagging,warping or delaminating
Moisture:≤1%

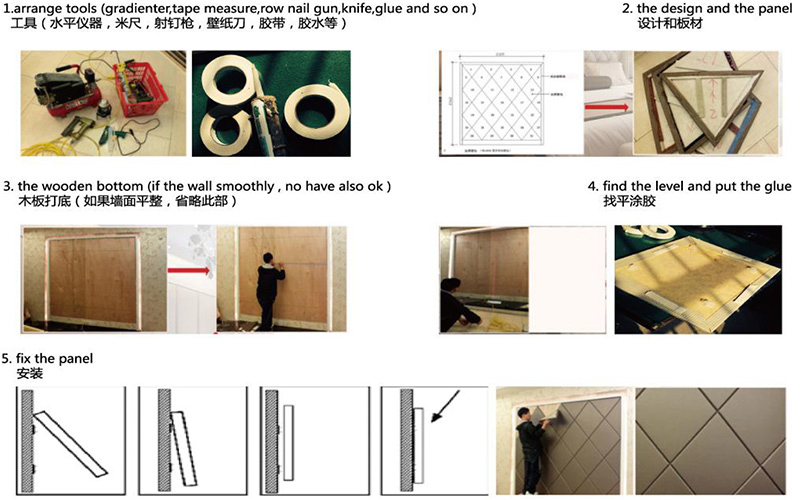

Installation:

Application:

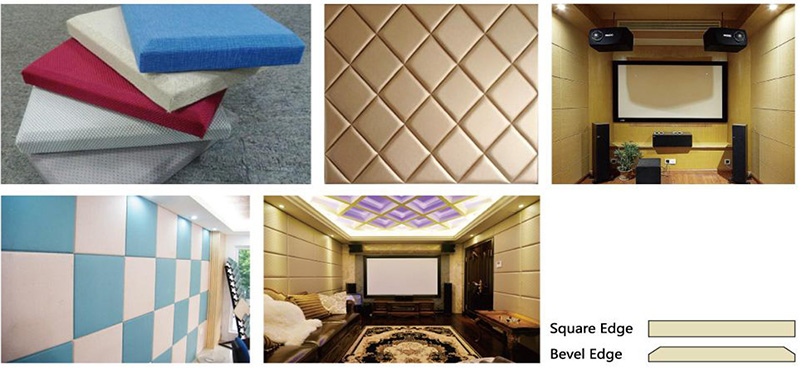

It is recommended that the panels be installed to the opposite two walls, ceilings to control the echo of the surroundings, the panels are widely used in hotel,meeting rooms,auditoriums,music rooms,libraries,etc.,where have special request for sound absorption.
