Sizes available:
595*595mm;600*600mm;595*1195mm;603*603mm;
605*605mm;603*1212mm;610*1220mm and etc.
Thickness of Tile:
7.0mm;7.5mm;8.0mm;8.5mm;9.0mm;9.5mm;12.0mm
Weight per Square meter:
7.0mm=5.6kg/Sq.m;7.5mm=5.9kg/Sq.m;8.0mm=6.2kg/Sq.m;
8.5mm=6.4kg/Sq.m;9.0mm=6.8kg/Sq.m;9.5mm=7.0kg/Sq.m;
12.0mm=9.1kg/Sq.m.
| Introduction : |

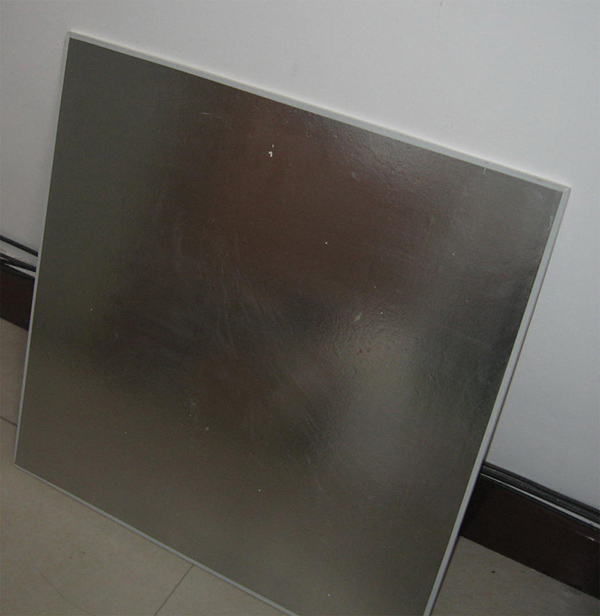

| PVC laminated gypsum ceiling tile: XIANGSAI PVC laminated gypsum ceiling tile uses paper faced gypsum board as core material and each tile laminated with vinyl face layer and aluminium foil backside layer;XIANGSAI pvc laminated gypsum tile using superior quality imported vinyl layer, offers ceiling tile many good features as:Environment friendly,resistant to humidity, not sag,no deforming, isolating heat, no radiation,easy to clean and assortments of patters. PVC laminated ceiling tile is always a economy,elegant and long lasting ceiling decoration materials. It is widely decorated for ceilings of hotel, restaurant, shopping mall, theater,cinema,transportation stations,office room and etc. |
Test parameters of Pvc laminated gypsum ceiling tile:
water asorbing: ≤2%,
noise reduction coefficient: 0.2-0.4 NRC
thermal conductivity:0.16W/mk
resist of humidity:90%
Fire proof grade:B1 in accordance with standard GB8624-1997
Strength of breaking load:7mm>110N;8mm>120N;9mm>140N.

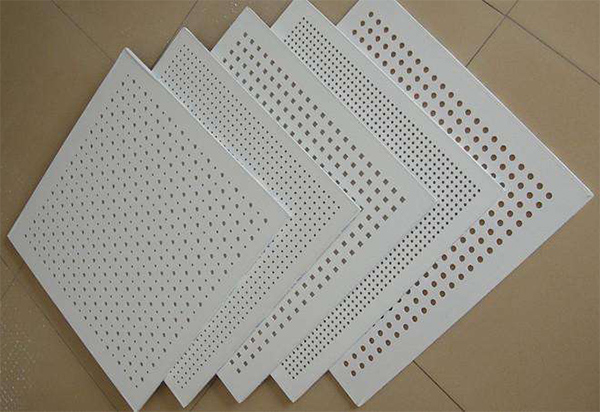

Perforations:

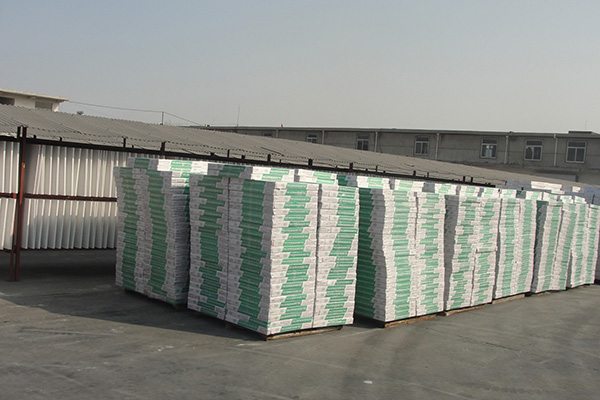

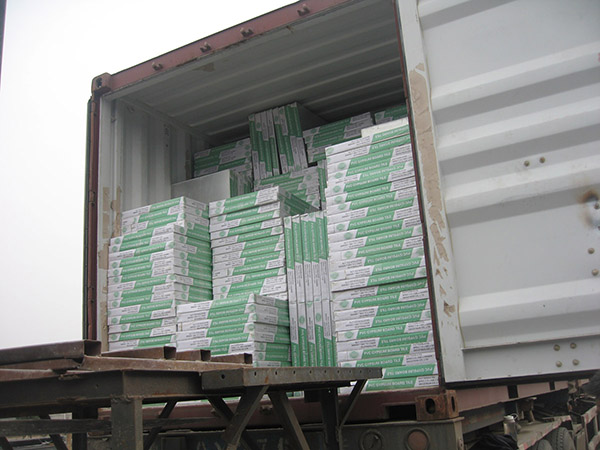

Packing and transportation:

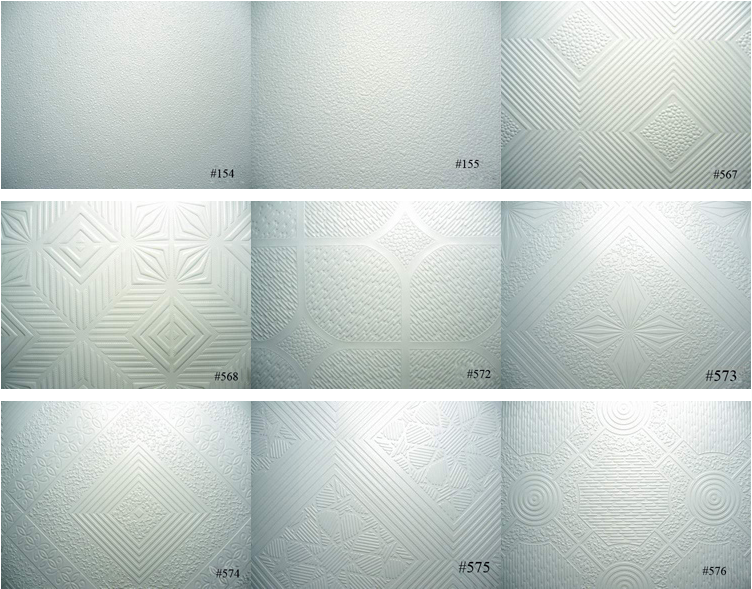

Patterns of PVC design:
